About The Product

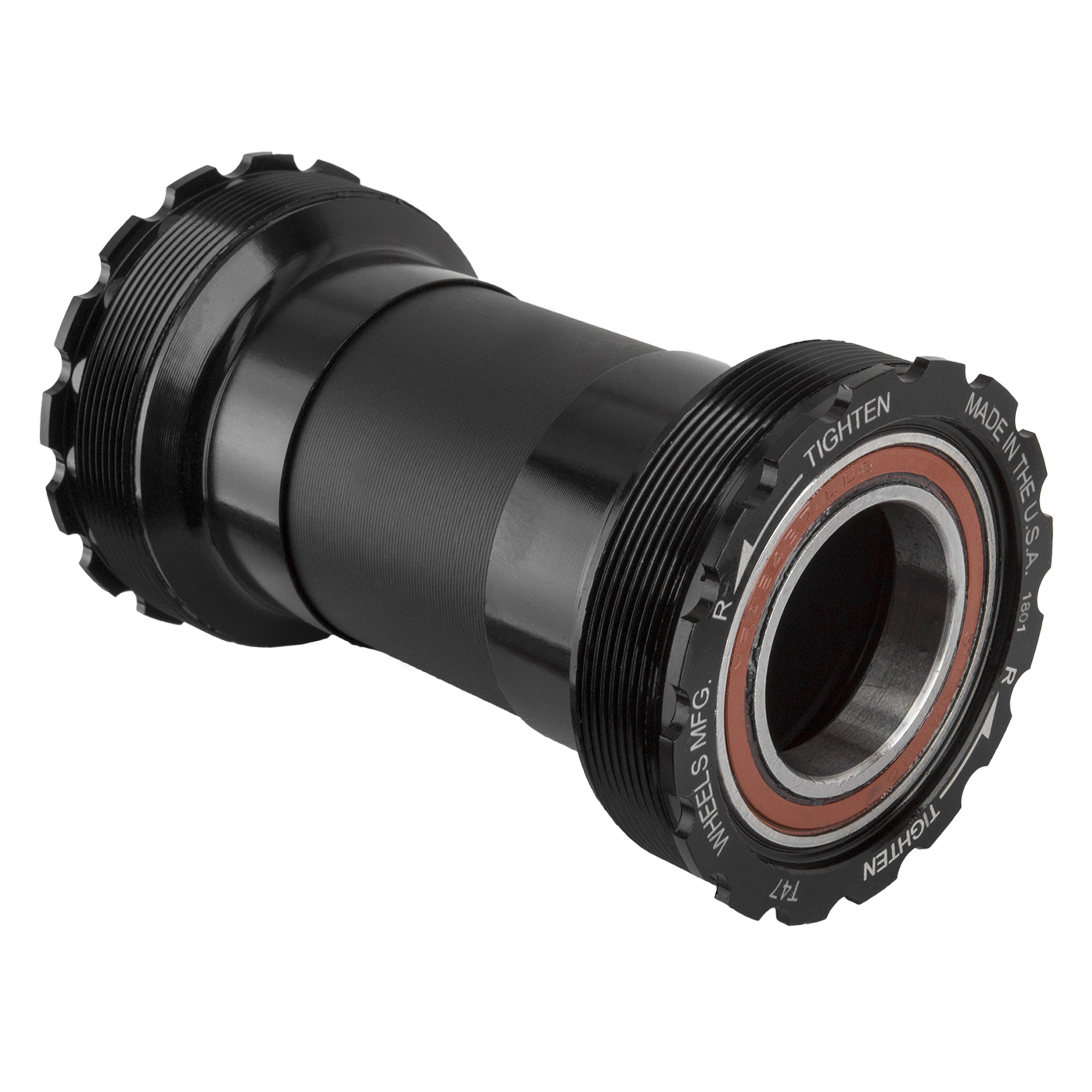

- T47 threaded BB cups for T47 frames and 24mm diameter spindle cranks
- Cups have internal bearings, and are typically used in BB shells with widths wider than 73mm
- Machined aluminum cups thread together directly into a T47 BB shell
- Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle
- T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread
- Bearings are easily serviced or replaced
Upgrade your cycling performance with the Wheels Manufacturing Shimano HT II Inboard Angular Contact T47 Bottom Bracket - the perfect choice for serious cyclists seeking precision, durability, and compatibility. Crafted from high-quality materials and engineered with advanced technology, this bottom bracket is designed to optimize power transfer and ensure smooth operation on the most demanding rides.
Materials & Construction
Constructed from precision-machined aluminum cups with a durable anodized finish, the Shimano HT II Inboard Bottom Bracket offers exceptional strength and resistance to corrosion. The internal bearings feature Enduro sealed bearings with ABEC 5 angular contact for maximum load capacity and durability, complemented by sealed ABEC 3 bearings on the base for enhanced protection against dirt, water, and grime.
Performance & Engineering
Designed specifically for T47 threaded frames (47mm ID), this bottom bracket ensures an ultra-secure fit across shell widths ranging from 68mm to 132mm, making it highly versatile for a wide range of bike setups. The use of Enduro's premium angular contact bearings provides superior stiffness and smoother rotation, translating to improved pedaling efficiency and power transfer.
Components & Technology
Compatible with 24mm spindle diameter cranksets, including Shimano HollowTech II, SRAM GXP, FSA MegaExo, and RaceFace EXI, this bottom bracket features precision-engineered inboard cups with standard BSA-style threads-drive side with left-hand thread, non-drive side with right-hand thread-for easy installation. The inclusion of a sleeve offers added protection against dirt ingress and shields internal wires from crank spindle interference, ensuring long-lasting performance and minimal maintenance.
Style & Use Case
Designed in sleek black, this bottom bracket complements any cycling rig-be it road, gravel, or mountain biking. Its versatile shell width compatibility (68mm to 132mm) makes it suitable for diverse bike frames, from lightweight racing bikes to sturdy off-road rigs. Whether you're upgrading your current setup or building a custom bike, this bottom bracket is engineered for reliability and optimal power delivery.
Innovative Features
- High-precision Enduro ABEC 5 angular contact bearings for enhanced load capacity and smoother rotation
- Compatibility with multiple spindle options (24mm, SRAM DUB, FSA MegaExo, RaceFace EXI)
- Sleeve included for dirt and grime protection, extending component lifespan and reducing maintenance
- Adjustable shell width compatibility from 68mm to 132mm for versatile frame fit
Key Specifications
- Shell I.D.: 47mm | Widths: 68-132mm
- Spindle Compatibility: 24mm (Shimano HollowTech II), SRAM DUB, FSA MegaExo, RaceFace EXI
- Material: Machined aluminum cups, sealed steel bearings
- Weight: 119 grams
- Color: Black
- Thread Type: Inboard T47 threaded cups (drive side left-hand thread)
Optimize your bike's drivetrain with the Wheels Manufacturing Shimano HT II Inboard Angular Contact T47 Bottom Bracket, delivering superior performance, durability, and technology for an unrivaled riding experience. Whether upgrading or building from scratch, trust in this premium component to keep you rolling smoothly mile after mile.
- Durable precision-machined aluminum cups ensure a lightweight yet robust connection, optimized for high-performance cycling applications.
- Engineered with Enduro sealed ABEC 5 angular contact bearings for smooth, maintenance-friendly operation and long-lasting durability.
- Compatible with T47 frames featuring shell widths from 68mm to 132mm, accommodating a wide range of mountain and road bikes with the popular 24mm spindle cranksets, including Shimano HollowTech II.
- Innovative sleeve between cups provides enhanced dirt and grime protection, extending bearing life and preventing contamination that affects performance.
- Versatile and easy to service, this inboard bottom bracket features left and right-hand threaded cups, supporting Shimano, SRAM DUB, and FSA MegaExo spindle interfaces for a customized fit and reliable power transfer.
| Specification | Value |
|---|---|
| Manufacturer | WHEELS MANUFACTURING |
| Manufacturer Part No. | T47-BB-SHIM-AC |
| Universal Product Code | 811079024244 |
| Invoice Description | BB SET WMFG T47 TO SHI 24mm CRANK |
| Shipping Weight | 0.50 lbs. |
| Package Dimensions | 4.7 x 4.35 x 4.45 |
| Country of Origin | UNITED STATES |
| Shell | 68/73mm |
| Interface | T47 |
| Spindle Type | Shimano HTII 24mm |
| Cup Material | Alloy |
| Weight | 119g |
| Cup Type | Inboard |
